Petrochemical & Process Industries
Knock-out drums, gas filters, reactors, MEG tanks, blending vessels and flare systems — ASME stamped equipment fabricated in Fujairah for QAFCO, Qatar Petroleum, RasGas, TAKREER, ENOC lubricants and chemical plants, plus complete blending and manufacturing plants.
What we deliver
- ASME VIII Div 1 and 2 vessels, drums and columns
- Lubricant blending and manufacturing plants
- Flare risers, KO drums and sulphur guard vessels
- Stainless and alloy steel process tanks
- Air-cooled condenser structures and steam ductwork
Petrochemical & Process Industries — projects

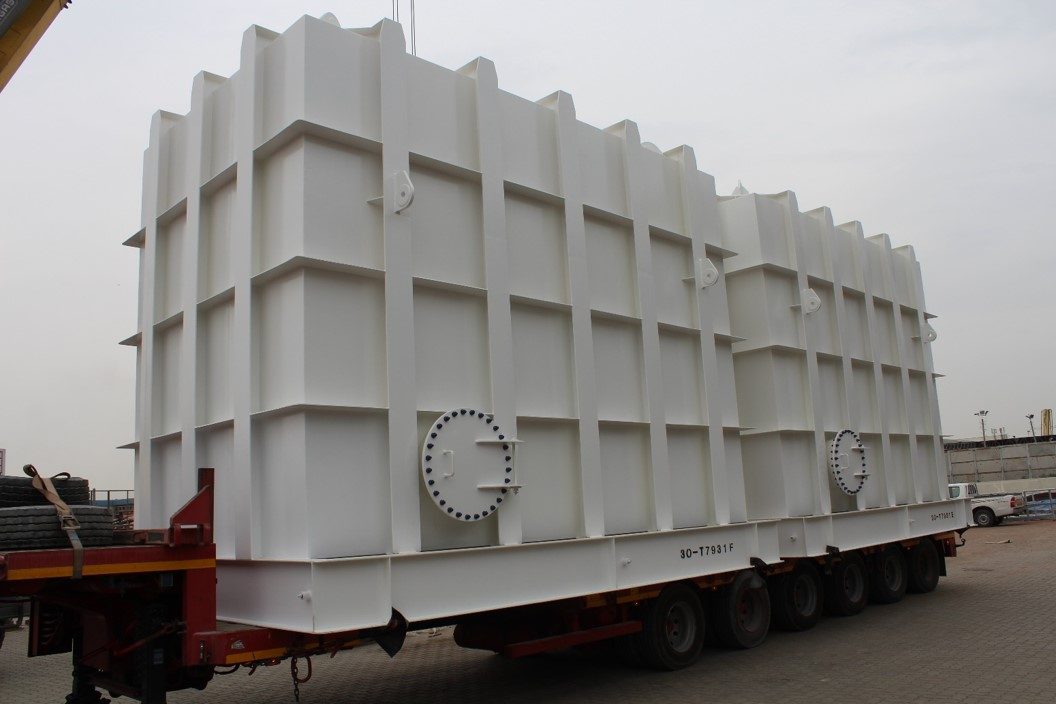

Fabrication · ExportMEG Tanks (6 nos.) — RasGas, Qatar
Six mono-ethylene glycol storage tanks fabricated for McDermott's RasGas project.
ELOMP — Phase II Expansion & Blending Facilities
EPC of the Phase II expansion — cooling package and coolant, brake fluid and turbine oil blending and filling facilities.

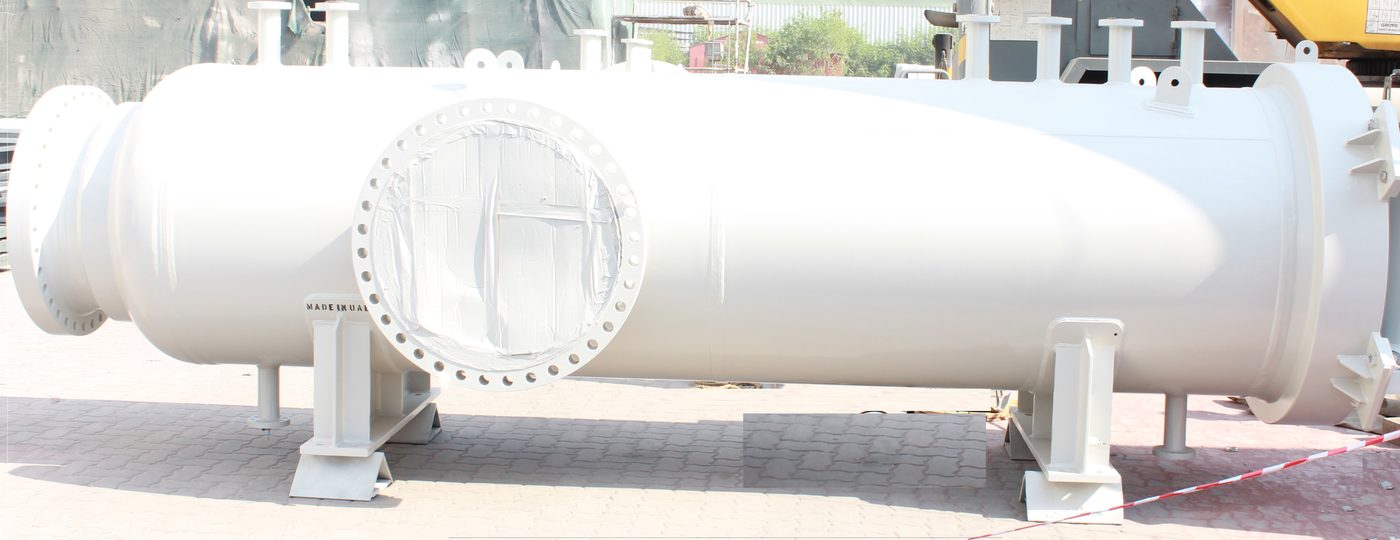

ASME VIII Div 1 · 84.5 tGas Filter Vessels — Qatar Petroleum
Two gas filter vessels with 35 mm shells and 65 mm ellipsoidal heads in SA 516 Gr.70N, 47.7 bar design.

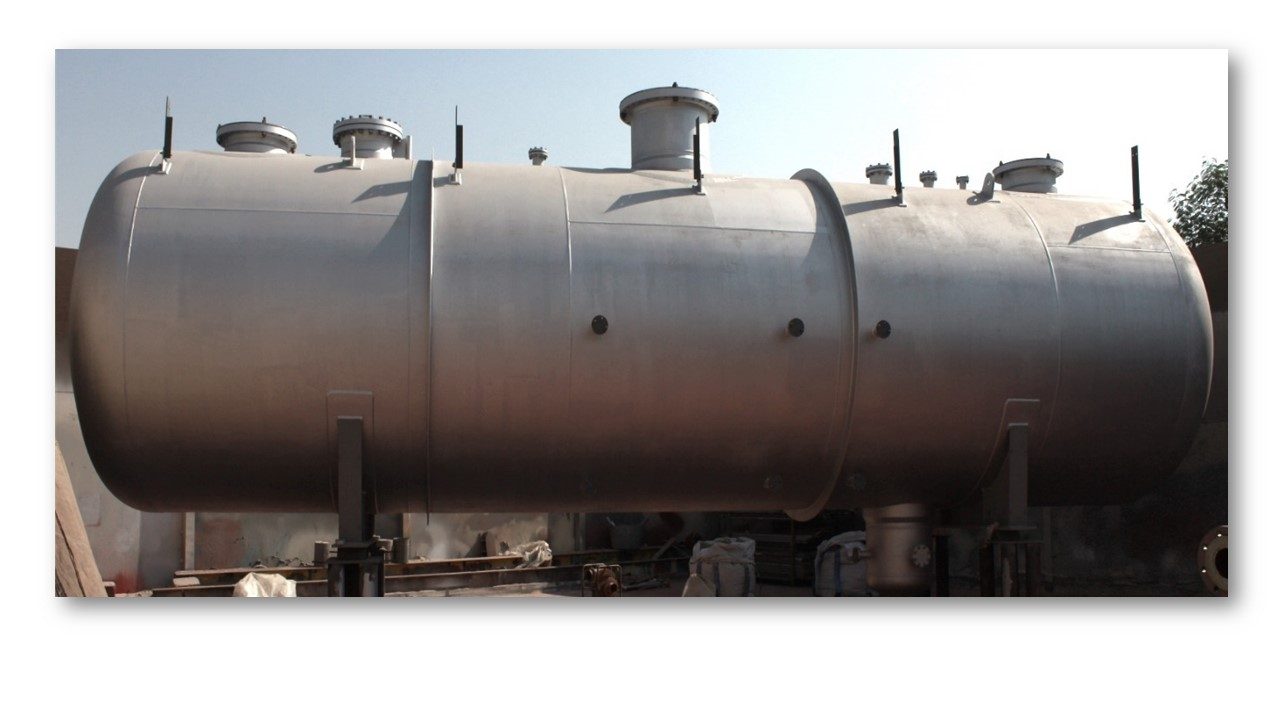

ASME VIII Div 1KOD Vessel — TAKREER
Ø 3,500 mm × 12,000 mm knock-out drum in SA 516 Gr.60N for TAKREER, via Tata Projects.

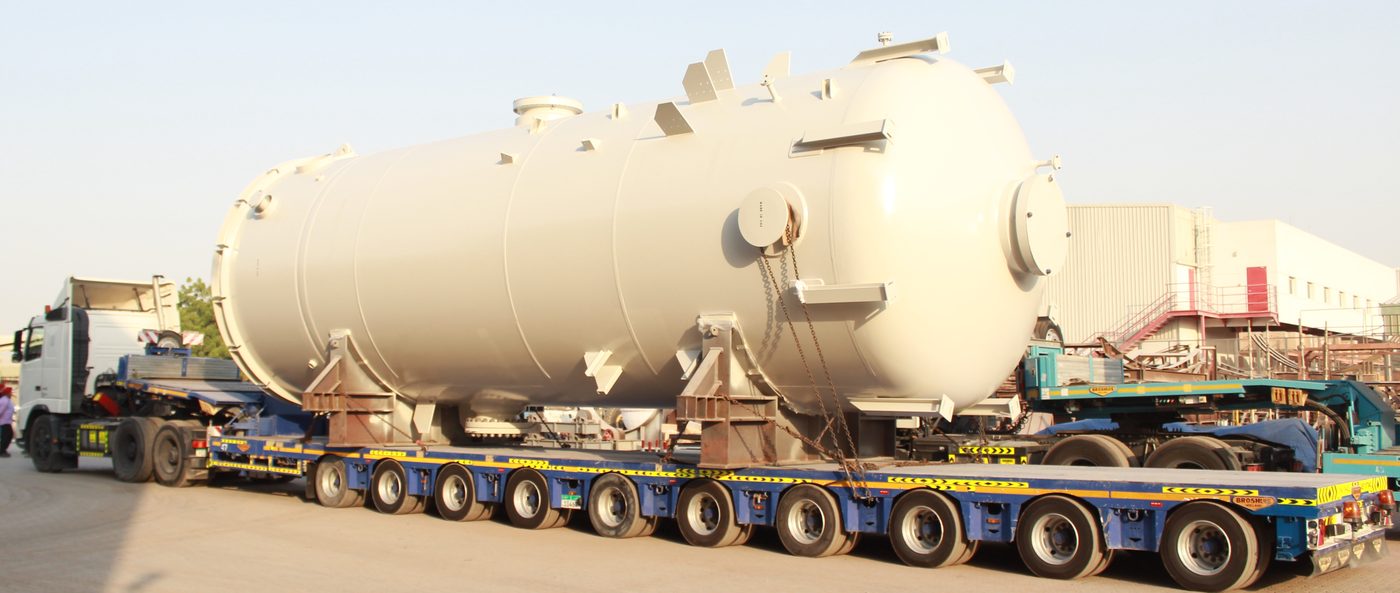

ASME VIII Div 2 · 62 mmKnock-Out Drums (2 nos.) — Qatar Petroleum
Two ASME VIII Division 2 knock-out drums, Ø 3,800 mm × 9,000 mm, 62 mm shell, SA 516 Gr.70N, −84 °C design.

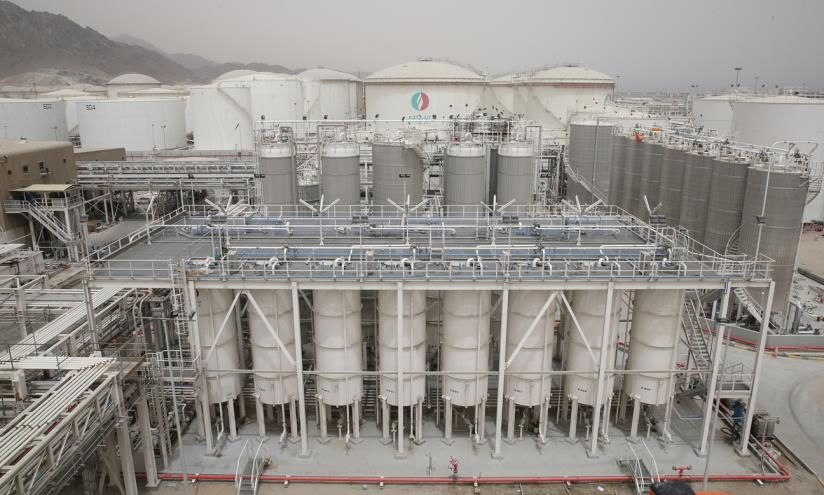

ENOC · Blending plantELOMP Lube Oil & Grease Manufacturing Plant — Phases I to IV
Base oil tanks, additive vessels, blending vessels, piping, pipe racks, truck loading bay and utilities for ENOC's lubricants plant.
Total Lubricants — Jebel Ali Plant
Three contracts at one plant — 61-tank painting and maintenance, a piggable jetty pipeline EPC, and blending vessel fabrication.

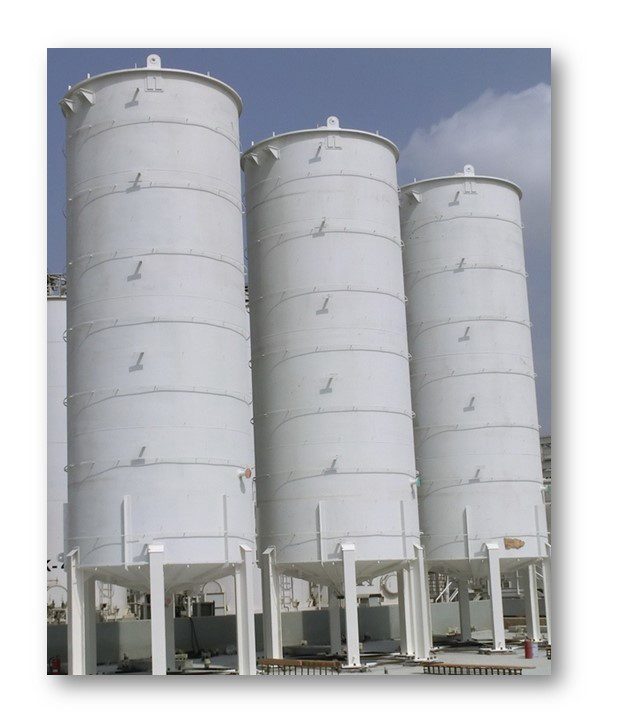

ASME VIII Div 1Additive Storage Vessels — ELOMP
Additive storage vessels V-215 to V-223 — Ø 4,000 mm × 11,500 mm, 19 t each, A516 Gr.70N.

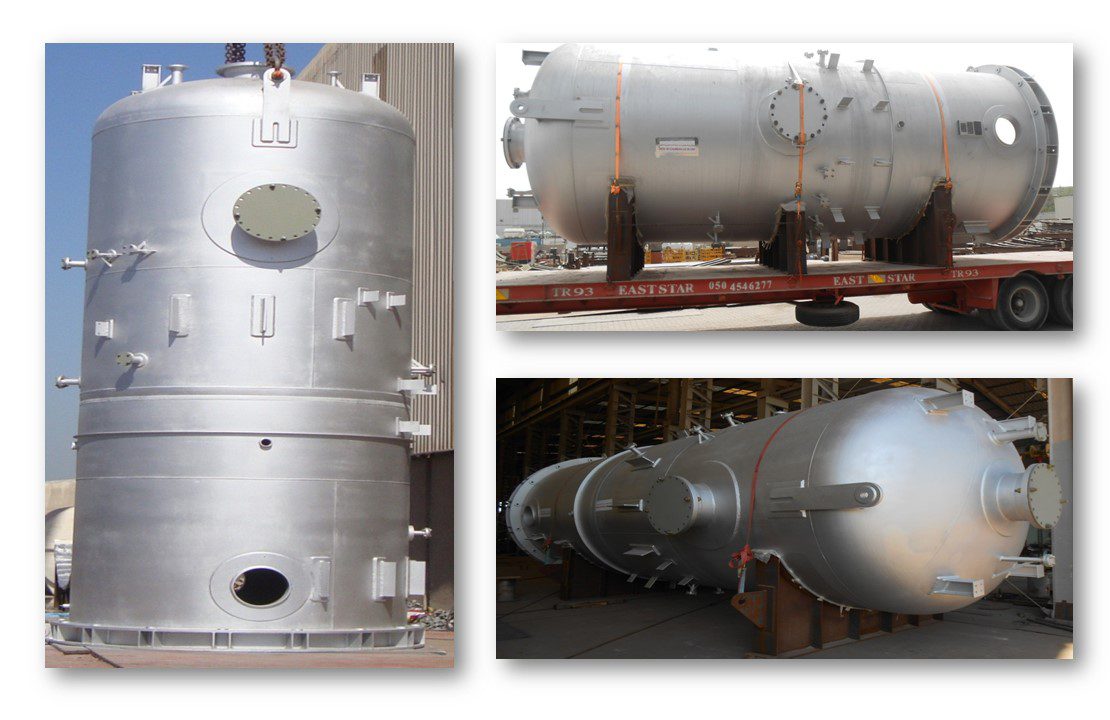

ASME VIII Div 1 · 36.5 tAmmonia Flare KO Drum — QAFCO
Ø 3,400 mm × 10,615 mm knock-out drum, 25 mm wall, A516 Gr.70N, −46 / 450 °C design.
