Knock-Out Drums (2 nos.) — Qatar Petroleum

Two Division 2 knock-out drums for Qatar Petroleum with 62 mm shells and 65 mm dished ends — low-temperature service to −84 °C.

Qatar2016FabricationDelivered Nov 2016

The equipment

Tags V-W5-001A/B. Inside diameter 3,800 mm, tangent length 9,000 mm, shell 62 mm, dished ends 65 mm, SA 516 Gr.70N. Design pressure 47.7 bar / full vacuum, design temperature −84 °C.

Gallery

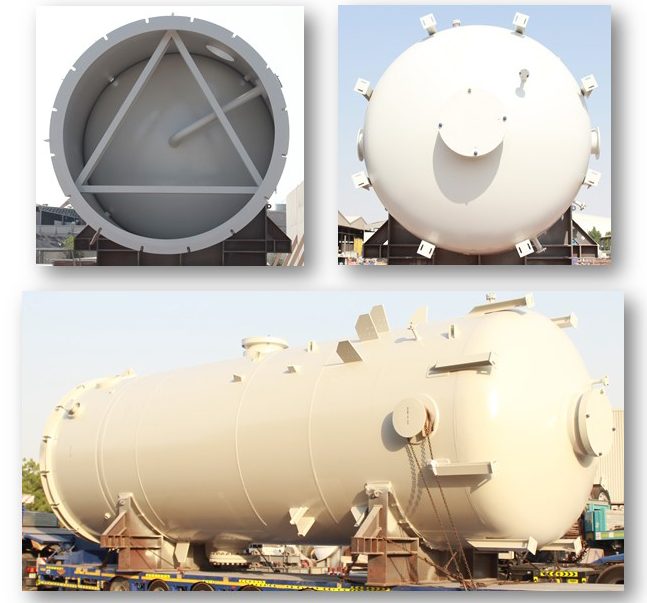

Knock-Out Drums (2 nos.) — Qatar Petroleum — photo 1
