Fujairah fabrication facility
300,000 ft² of yard.3,000 MT every month.12 km from Fujairah Port.
Three heavy-fabrication bays at Al Hayl Industrial Area, Fujairah — a 300,000 ft² yard turning out 3,000 MT of coded steel a month, with plate rolling to 70 mm, CNC cutting to 24 m, PWHT and hydrotest in-house, and a short road to the port for oversize loads.
Three heavy-fabrication bays · Al Hayl, Fujairah300,000 ft²Fabrication yard — 27,900 m² at Al Hayl, Fujairah
3,000 MTCoded steel a month — tanks, vessels, structures
70 mmHydraulic plate rolling capacity
3,600 mmCNC cutting rail gauge · 24 m cut length
10–32 MTOverhead cranes · PWHT · hydrotest
12 kmFrom Fujairah Port for heavy transport
What we fabricate

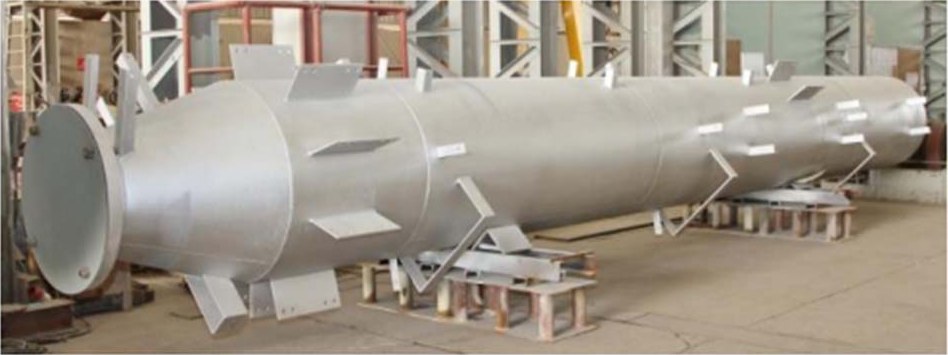

- Pressure vessels and columns — ASME U and U2 stamped
- Spheres for LPG, propane and LNG — shells to 125 mm

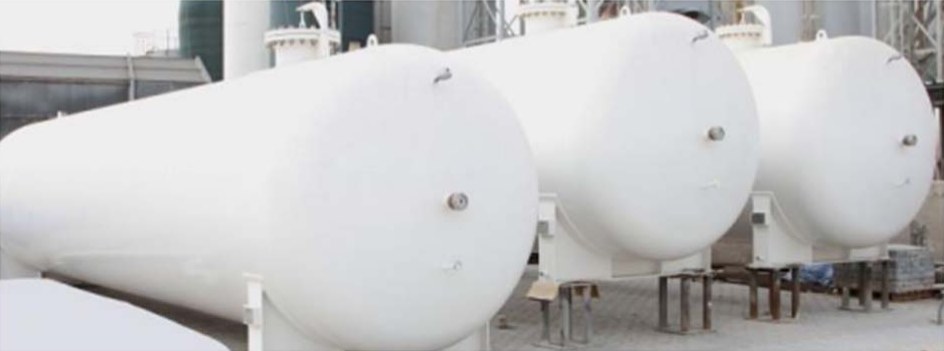

- Above-ground and underground LPG and propane storage tanks
- Atmospheric vessels, rectangular tanks and silos
- Knock-out drums, separators, scrubbers, strainers, surge tanks
- Heat exchangers and air receivers
- Process and LPG skids, floating suctions
- Flare stacks, towers and structural steel
Facility capability
- Hydraulic plate rolling to 70 mm

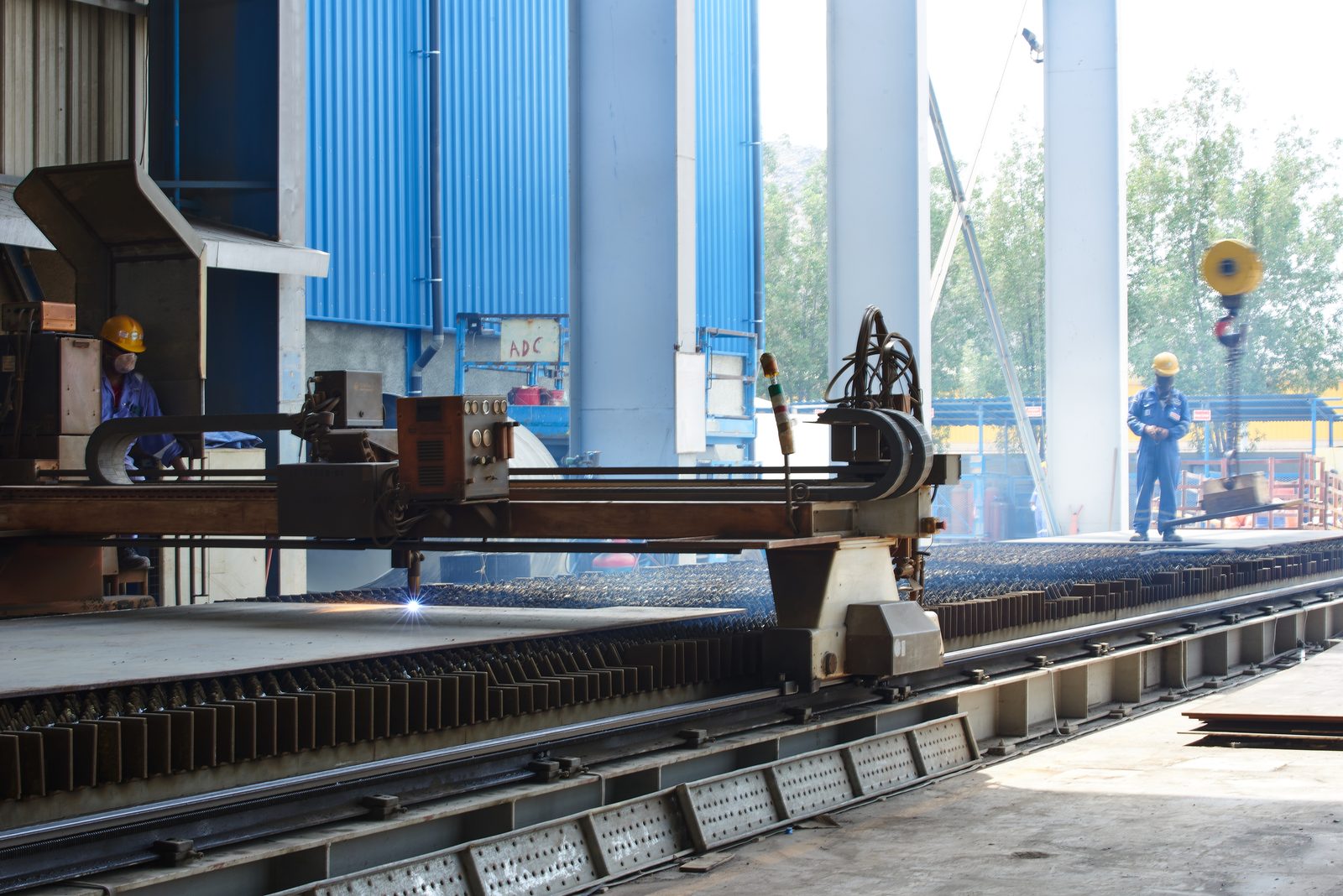

- CNC plasma cutting — 3,600 mm rail gauge, 24 m cut length
- CNC drilling to 100 mm plate
- Overhead cranes 10–32 MT
- PWHT and hydrotest facilities
- Painting supervised by NACE and BGAS certified inspectors
- Welders qualified in SMAW, FCAW, TIG and SAW
- Dedicated scaffolding team
Welding capabilities
Our welding expertise enables the execution of thick-wall, high-pressure and cryogenic applications, proven through qualified procedures and advanced testing. Our welding expertise includes:
125 mm
Core welding capabilityThick-plate welding qualified in 3G position

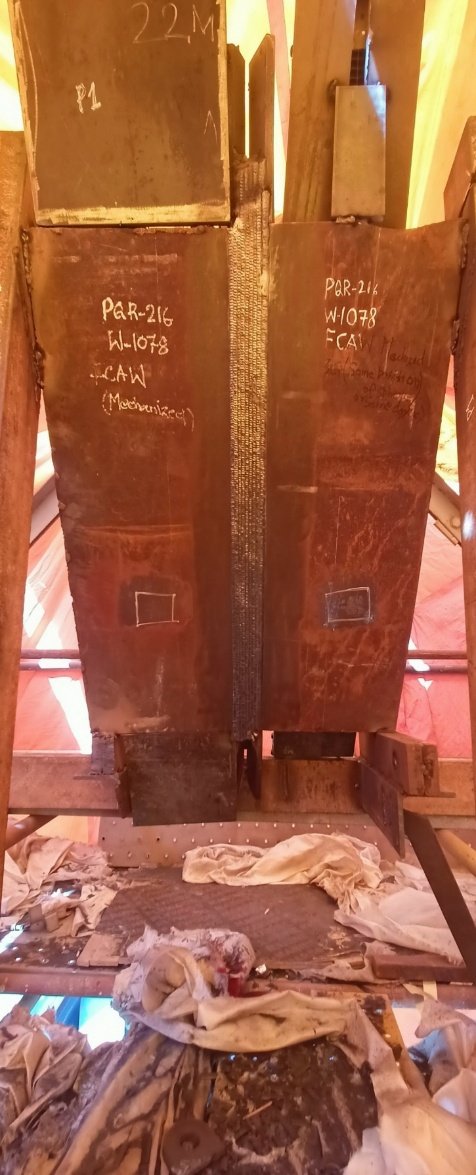

Qualified procedures (PQR) for 125 mm thick plate in the vertical 3G position — SMAW and mechanised FCAW — for thick-wall, high-pressure and cryogenic work such as the MERAM LNG sphere.
- Multi-cycle Post Weld Heat Treatment (PWHT) — up to 4 cycles for critical joints

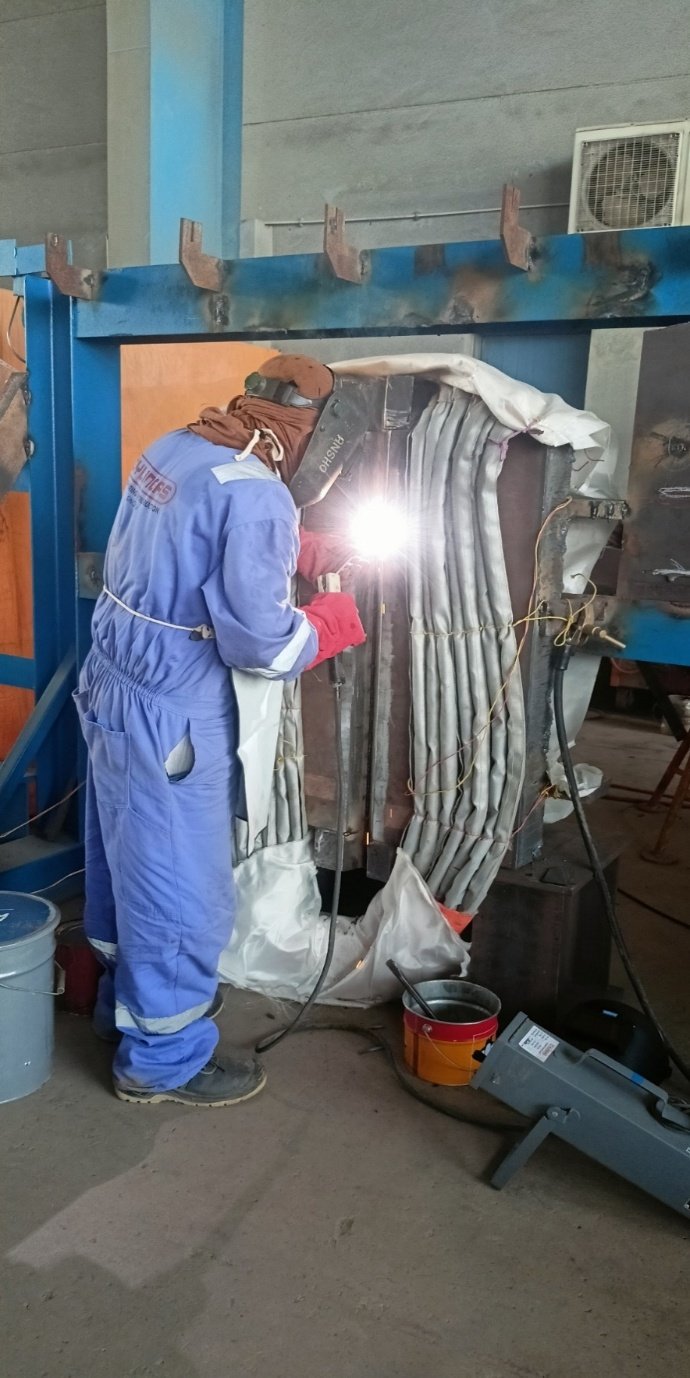

- Mechanised Flux-Cored Arc Welding (FCAW) for heavy-wall applications
- Proven competence in thick-wall structural and pressure-grade welds under stringent inspection regimes
Stamps & certificates
ASME UPressure vessels — ASME VIII Div 1
ASME U2Division 2 vessels
NB RNational Board — repairs and alterations
ISO9001 · 14001 · 45001

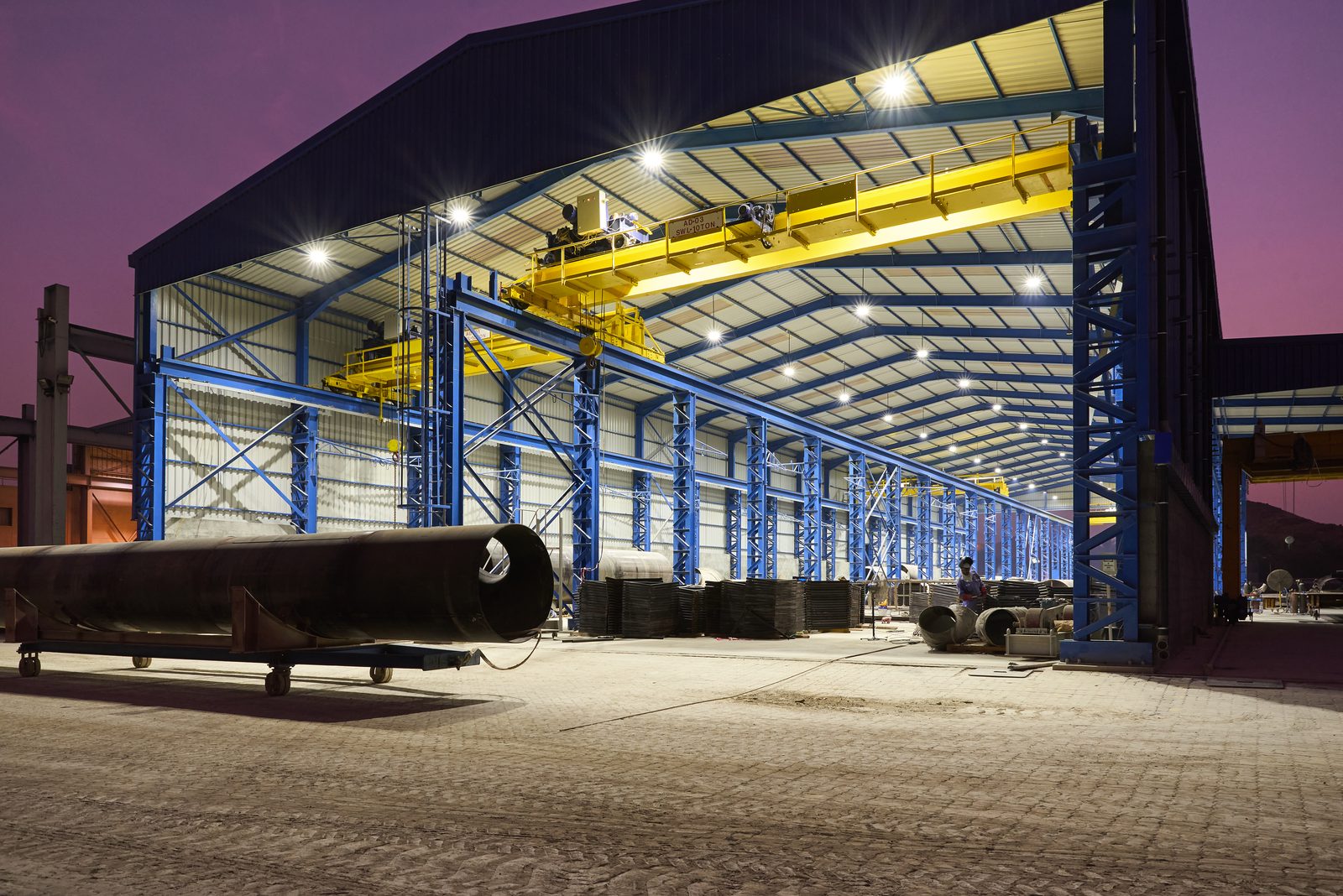

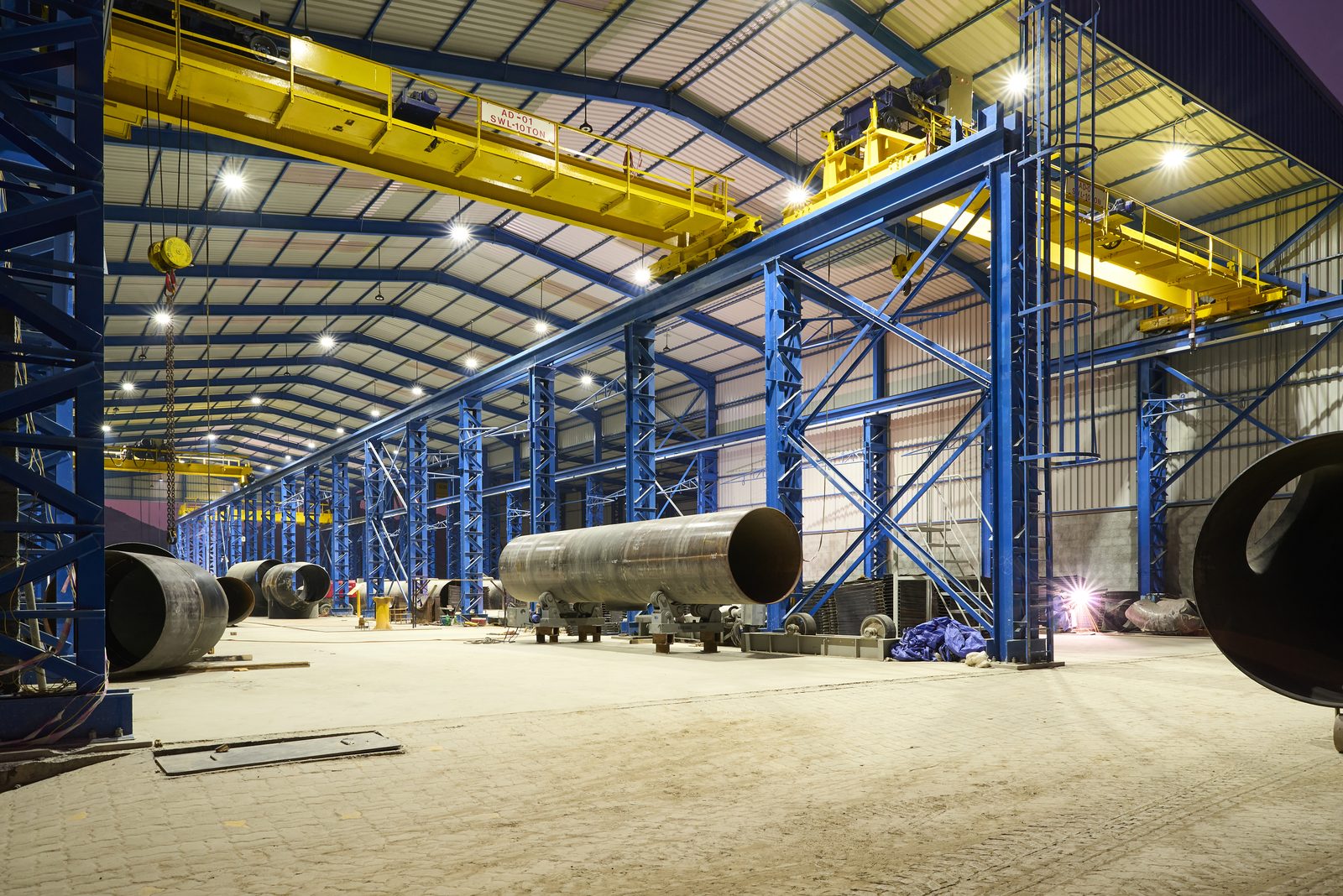

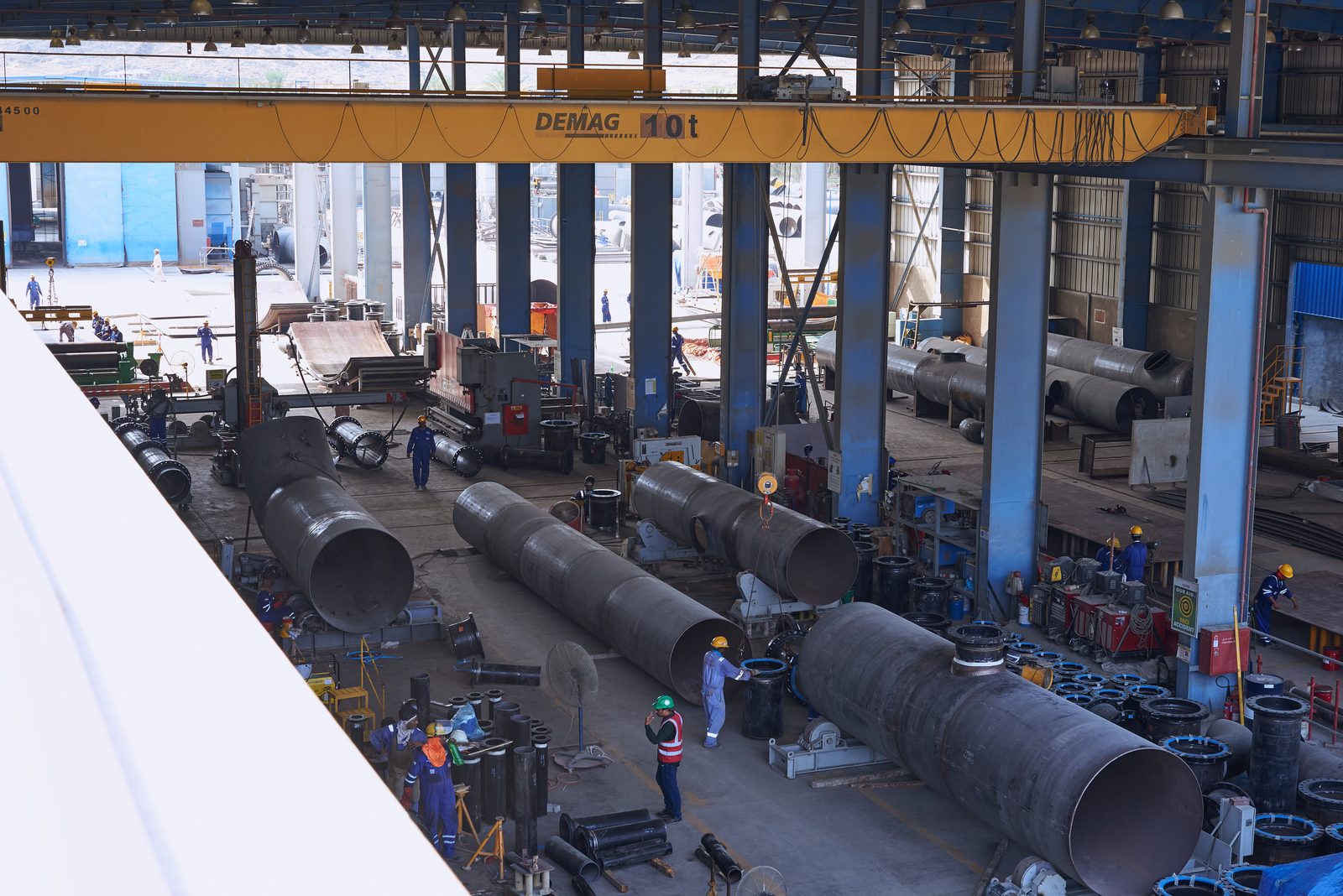

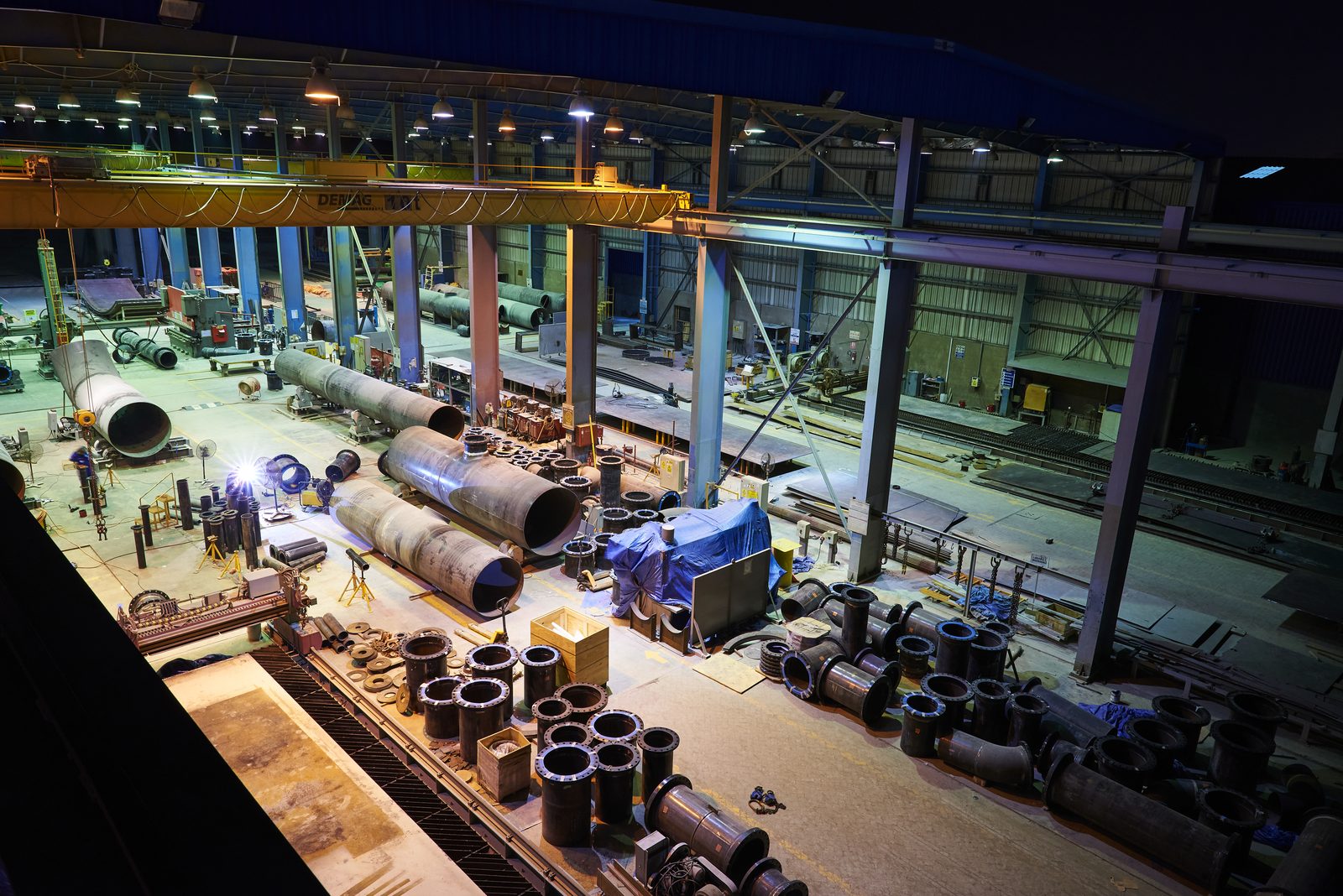

Shop fabrication in pictures
Inside the Fujairah bays.
