The equipment

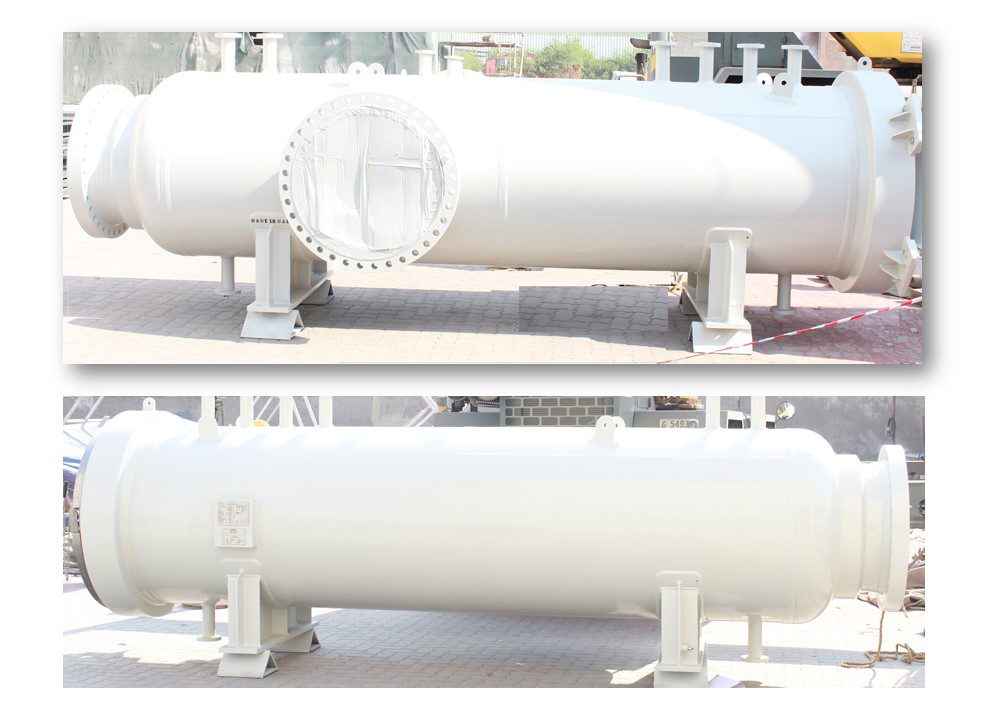

Tags S-W5-001A/B. Shell 35 mm, ellipsoidal dished ends 65 mm, inside diameter 1,100 mm, 4,000 mm weld line to tangent line, SA 516 Gr.70N. Design pressure 47.7 bar / full vacuum, design temperature −10 / 84 °C. Combined weight 84.5 tonnes.
